Forklift Battery Price List – Stock Battery Sizes and Specifications:

How to Order	Order Online	Reconditioned Batteries	Contact Us
Battery Measurements	Standard Plugs	Optional Plugs	Battery Cover Styles

Online Price and Checkout:

1. Select battery from the chart below.

2. Click on the Battery Model in Blue to proceed to price, options & checkout.

12 Volt Batteries / 6 Cells
Click Model# Below For Battery Price	GB	DC	AH CAPACITY		LENGTH (X)		WIDTH (Y)		HEIGHT (Z)		COVER	WEIGHT
	TRAY#	VOLTS	6 HR	20 HR	Inch	CM	Inch	CM	Inch	CM	Yes / No	LBS	Kilo
6-85-11	562	12v	425	670	26	66.04	7 3/4	19.69	23 1/4	59.06	YES	471	214
6-85-13	217	12v	510	804	30 5/8	77.79	6 1/2	16.51	23 1/4	59.06	YES	547	248
	104	12v	510	804	30 5/8	77.79	7 3/4	19.69	23 1/4	59.06	YES	547	248
6-100-13	174	12v	600	946	30 5/8	77.79	7 3/4	19.69	26 1/4	66.68	YES	612	278
6-125-13	307	12v	750	1182	30 14/25	77.62	7 3/4	19.69	31	78.74	YES	735	333
24 Volt Batteries / 12 Cells
Click Model# Below For Battery Price	GB	DC	AH CAPACITY		LENGTH (X)		WIDTH (Y)		HEIGHT (Z)		COVER	WEIGHT
	TRAY#	VOLTS	6 HR	20 HR	Inch	CM	Inch	CM	Inch	CM	Yes / No	LBS	Kilo
12-85-5	163	24v	170	268	24 7/8	63.18	6 1/2	16.51	22 5/8	57.47	NO	500	227
	152	24v	170	268	24 7/8	63.18	6 1/2	16.51	23 1/4	59.06	YES	500	227
	EP	24v	170	268	25 15/16	65.81	5 3/4	14.61	23 1/4	59	YES	464	211
12-85-7	377	24v	255	402	25 3/8	64.45	8 11/16	22.07	23 1/4	59.06	YES	616	279
	179	24v	255	402	33 19/32	85.33	6 1/2	16.51	23 1/4	59.06	YES	616	279
12-85-13	201	24v	510	804	30 5/8	77.79	12 13/16	32.54	23 1/4	59.06	YES	1094	496
	133	24v	510	804	30 9/16	77.63	12 3/4	32.39	22 5/8	57.47	NO	1094	496
12-85-15	265	24v	595	938	35 1/8	89.22	12 7/8	32.7	23 1/4	59.06	YES	1245	565
	357	24v	595	938	35 1/8	89.22	12 7/8	32.7	22 5/8	57.47	NO	1240	563
12-85-19	175	24v	765	1206	29 5/8	75.25	19 17/32	49.61	22 5/8	57.47	NO	1513	686
12-85-21	195	24v	850	1340	32 5/8	82.87	19 7/32	48.82	22 5/8	57.47	NO	1652	750
12-85-23	393	24v	935	1474	35 5/8	90.49	19 7/32	48.82	22 5/8	57.47	NO	1769	803
12-100-13	254	24v	600	946	30 9/16	77.63	12 3/4	32.39	26 1/4	66.68	YES	1224	555
12-125-11	137	24v	625	985	26 1/8	66.36	12 7/8	32.7	31	78.74	YES	1234	560
	153	24v	625	985	31 7/8	80.96	11	27.94	30 1/2	77.47	NO	1229	558
	102	24v	625	985	31 7/8	80.96	11	27.94	31	78.74	YES	1248	566
12-125-13	101	24v	750	1182	30 5/8	77.79	12 3/4	32.39	31	78.74	YES	1470	667
	488	24v	750	1182	30 5/8	77.79	12 3/4	32.39	30 1/2	77.47	NO	1461	663
	165	24v	750	1182	35 3/4	90.81	11 3/4	29.85	30 1/2	77.47	NO	1468	666
	103	24v	750	1182	35 3/4	90.81	11 3/4	29.85	31	78.74	YES	1482	672
	288	24v	750	1182	35 3/4	90.81	13 1/2	34.29	30 1/2	77.47	NO	1473	668
12-125-15	155	24v	875	1379	35 1/8	89.22	12 7/8	32.7	30 1/2	77.47	NO	1690	767
	181	24v	875	1379	35 1/8	89.22	12 7/8	32.7	31	78.74	YES	1710	776
	252	24v	875	1379	36	91.44	14	35.56	30 1/2	77.47	NO	1688	766
	241	24v	875	1379	38	96.52	12	30.48	30 1/2	77.47	NO	1695	769
12-125-17	183	24v	1000	1576	38	96.52	13 1/2	34.29	30 1/2	77.47	NO	1858	843
36 Volt Batteries / 18 Cells
Click Model# Below For Battery Price	GB	DC	AH CAPACITY		LENGTH (X)		WIDTH (Y)		HEIGHT (Z)		COVER	WEIGHT
	TRAY#	VOLTS	6 HR	20 HR	Inch	CM	Inch	CM	Inch	CM	Yes / No	LBS	Kilo
18-85-13	385	36v	510	804	30 5/8	77.79	19 1/8	48.58	22 5/8	57.47	NO	1641	745
	187	36v	510	804	38 1/8	96.84	15 3/8	39.05	22 5/8	57.47	NO	1652	750
18-85-15	318	36v	595	938	31 13/16	80.8	23 9/16	59.85	22 5/8	57.47	NO	1868	848
	331	36v	595	938	38 1/8	96.84	17 11/16	44.93	22 5/8	57.47	NO	1879	853
18-85-17	278	36v	680	1072	31 13/16	80.8	26 1/2	67.31	22 5/8	57.47	NO	2077	942
	389	36v	680	1072	31 13/16	80.8	26 9/16	67.47	23 1/4	59.06	YES	2092	949
	110	36v	680	1072	33 1/16	83.98	25 9/16	64.93	22 5/8	57.47	NO	2081	944
	342	36v	680	1072	33 1/16	83.98	25 9/16	64.93	23 1/4	59.06	YES	2099	952
	229	36v	680	1072	38 1/8	96.84	20 1/16	50.96	22 5/8	57.47	NO	2085	946
	470	36v	680	1072	38 1/8	96.84	20 1/8	51.12	23 1/4	59.06	YES	2103	954
18-85-19	683	36v	765	1206	34 7/8	88.58	25 1/2	64.77	22 5/8	57.47	NO	2269	1029
	343	36v	765	1206	35 7/8	91.12	25 5/8	65.09	22 5/8	57.47	NO	2273	1031
	176	36v	765	1206	38 1/8	96.84	22 5/16	56.67	22 5/8	57.47	NO	2275	1032
18-85-21	303	36v	850	1340	38 1/8	96.84	24 5/8	62.55	22 5/8	57.47	NO	2479	1125
18-85-23	134	36v	935	1474	38 1/4	96.84	26 7/8	68.26	22 5/8	57.47	NO	2653	1204
	426	36v	935	1474	38 1/8	96.84	26 7/8	68.26	23 1/4	59.06	YES	2681	1216
18-85-25	177	36v	1020	1608	38 1/8	96.84	29 1/8	73.98	22 5/8	57.47	NO	2898	1315
	367	36v	1020	1608	38 1/8	96.84	29 15/16	76.04	23 1/4	59.06	YES	2930	1329
18-85-27	349	36v	1105	1742	38 1/2	97.79	31 3/8	79.69	22 5/8	57.47	NO	3142	1426
18-85-29	346	36v	1190	1876	38 1/4	97.16	33 3/4	85.73	22 5/8	57.47	Any	3350	1520
18-85-31	811	36v	1275	2010	38 3/8	97.46	36	91.44	22 5/8	57.47	Any	3619	1642
18-85-33	136	36v	1360	2144	38 1/4	97.16	38 1/4	97.16	22 5/8	57.47	Any	3930	1783
18-100-17	427	36v	800	1261	38 1/8	96.84	20 1/16	50.96	25 5/8	65.09	NO	2340	1062
18-100-21	292	36v	1000	1576	38 1/8	96.84	24 5/8	62.55	25 5/8	65.09	NO	2790	1266
18-125-11	216	36v	625	985	38 1/8	96.84	13 1/8	33.34	30 1/2	77.47	NO	1852	840
18-125-13	138	36v	750	1182	38 1/16	96.68	15 3/8	39.05	30 1/2	77.47	NO	2205	1000
18-125-15	158	36v	875	1379	38 1/8	96.84	17 11/16	44.93	30 1/2	77.47	NO	2488	1129
18-125-17	215	36v	1000	1576	38 1/8	96.84	20 1/16	50.96	30 1/2	77.47	NO	2787	1265
48 Volt Batteries / 24 Cells
Click Model# Below For Battery Price	GB	DC	AH CAPACITY		LENGTH (X)		WIDTH (Y)		HEIGHT (Z)		COVER	WEIGHT
	TRAY#	VOLTS	6 HR	20 HR	Inch	CM	Inch	CM	Inch	CM	Yes / No	LBS	Kilo
24-85-13	132	48v	510	804	30 5/8	77.79	25 3/8	64.45	22 5/8	57.47	NO	2188	993
	147	48v	510	804	38 1/8	96.84	20 1/2	52.07	22 5/8	57.47	NO	2194	995
24-85-15	180	48v	595	938	38 1/8	96.84	23 5/8	60.01	22 5/8	57.47	NO	2494	1132
	888	48v	595	938	35	88.9	25 1/2	64.77	22 5/8	57.47	NO	2492	1131
24-85-17	300	48v	680	1072	38 1/8	96.84	26 7/8	68.26	22 5/8	57.47	NO	2770	1257
	354	48v	680	1072	38 1/8	96.84	26 7/8	68.26	23 1/4	59.06	YES	2794	1268
24-85-19	410	48v	765	1206	38 1/8	96.84	29 1/2	74.93	22 5/8	57.47	NO	3026	1373
24-85-21	299	48v	850	1340	38 1/8	96.84	32 5/8	82.87	22 5/8	57.47	NO	3305	1500
24-85-25	390	48v	1020	1608	38 3/4	98.43	38 1/8	96.84	22 5/8	57.47	NO	3864	1753
24-85-27	1160	48v	1105	1742	38 1/4	97.16	41 3/4	106.05	23 5/8	60.02	YES	4322	1960
24-125-13	428	48v	750	1182	38 1/8	96.84	20 9/16	52.23	30 1/2	77.47	NO	2940	1334
	493	48v	750	1182	44	111.76	20 9/16	52.23	30 1/2	77.47	NO	3188	1446
80 Volt Batteries / 40 Cells
Click Model# Below For Battery Price	GB	DC	AH CAPACITY		LENGTH (X)		WIDTH (Y)		HEIGHT (Z)		COVER	WEIGHT
	TRAY#	VOLTS	6 HR	20 HR	Inch	CM	Inch	CM	Inch	CM	Yes / No	LBS	Kilo
40-125-11	<SAME	80v	626	985	43.19	109.7026	25.31	64.2874	30.5	77.47	NO	3496	1585
	<SAME	80v	625	985	34.69	88.1126	31.62	80.3148	30.5	77.47	NO	3498	1586
Lektro Tug Batteries
Click Model# Below For Battery Price	GB	DC	AH CAPACITY		LENGTH (X)		WIDTH (Y)		HEIGHT (Z)		COVER	WEIGHT
	TRAY#	VOLTS	6 HR	20 HR	Inch	CM	Inch	CM	Inch	CM	Yes / No	LBS	Kilo
FS-16NP	<SAME	6v	230	340	10 7/8	276	6 5/8	168	16	406	NO	114	52
FS23S-6C413	<SAME	12v	300	443	18 15/16	481	10 3/8	263	16	406	NO	324	147
FS23S-24C617	<SAME	48v	520	768	38 1/8	968	26 1/4	667	18 1/8	460	NO	2136	971

Click here for: Additional Battery Sizes

NOTE:

· Add for Residential & Lift Gate Delivery, or if GB is required to provide a 2^nd forklift installation.

· Canadian customers –Prices are in USD. Additional delivery costs may apply.

· Pricing is subject to change with the cost of lead. Written quotes are valid for 30 days unless stated otherwise.

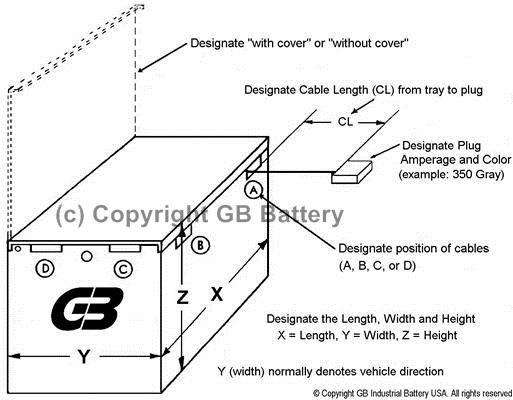

How to Measure your Battery:

X = Length, Y = Width, Z = Height
